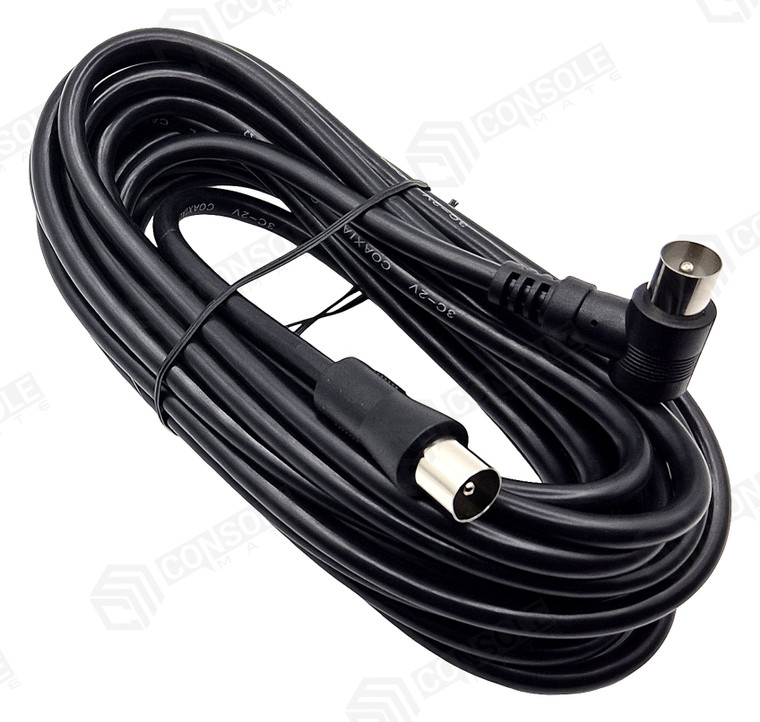

Right Angle TV Antenna Flylead 4.5 m — PAL Male to Male, 90° Plug, 75 Ω Coax
A 4.5 metre TV aerial lead with a PAL (Belling-Lee) male plug at each end — one straight, one turned through 90°. It runs from an antenna wall plate to a television, set-top box, PVR or FM/DAB tuner.
Check compatibility
Check the ends before ordering. Both ends are MALE plugs, so this joins a wall plate to a device. If you need to make a lead you already own longer you want a male-to-female extension instead, which is a different product.
Check these alternatives
Adding length to an existing aerial lead? See our 1.8 m PAL male-to-female extension instead. A plug at one end and socket at the other extends a matching male-ended cable.
Choose only what your setup needs. Linked items are sold separately.
Key product details
- Turns the aerial connection through 90°. The right-angle plug goes at the TV end, so a wall-mounted or cabinet-backed set can sit flat instead of being held off the wall by a lead standing straight out of the socket.
- 4.5 m long. Enough to cross a room, run around a skirting board or reach a wall plate on the far side of the TV, rather than the short wall-plate-to-set hop a standard flylead is cut for.
- PAL (Belling-Lee) male plug at BOTH ends. One straight, one right angle. It fits a standard TV aerial socket and a standard wall plate. It is a LEAD, not an extension — there is no socket on either end.
- 75 Ω 3C-2V coaxial cable. Single shielded, the standard domestic TV aerial specification for digital free-to-air.
- Moulded strain relief at both ends. The cable flexes at the boot rather than at the solder joint.
- Black, 4.5 m. Nickel-plated connector shells.
About this item
The right-angle end is the point of it. A lead standing straight out of the back of a slim panel levers on the aerial socket every time the set is moved, and it stops a wall-mounted television sitting flat against the wall. Turning the plug through 90° takes the strain off the socket and lets the cable run down or sideways behind the set.
At 4.5 metres this is the long rung of the range. It is meant for the runs a standard short flylead will not make — a wall plate on the opposite side of the room, a cable routed around a doorway, or a set-top box sitting away from the outlet. If your outlet sits directly behind the television, the shorter lead is the tidier choice.
Completely passive — no power, no amplifier, nothing to configure.
