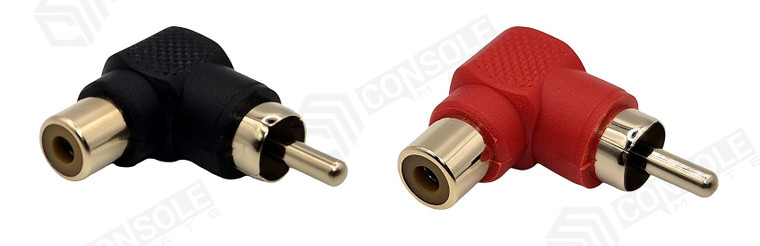

RCA Right-Angle Adaptors, Twin Pack — 1× Red + 1× Black, Male to Female, 90°, Gold-Plated
A small right-angle adaptor that turns any standard RCA lead through 90 degrees. One arm is an RCA male plug, the other is an RCA female socket, set at right angles to each other. The plug goes into your equipment, your existing lead plugs into the socket, and the cable then runs along the back panel instead of straight out of it.
Check compatibility
Check the gender before ordering. This is the male-to-female version: a pin on one arm, a hole on the other. It plugs into a socket on your equipment and accepts a plug from your lead. If both of the things you are joining end in a plug you want a female-to-female coupler instead, which is a different part. Two adaptors can look almost identical in a photograph and only one of them will do a given job, so it is worth a moment on the close-up pictures.
Key product details
- RCA male plug on one arm, RCA female socket on the other — it converts a straight RCA lead into a right-angle one
- 90° elbow so the cable leaves the socket sideways instead of straight out the back
- Gold-plated contacts on both the centre pin and the outer sleeve
- Moulded body with a knurled grip band, so it pushes on and pulls off by hand
- One-piece rigid adaptor — no cable, no lead, nothing to power
- Completely passive: carries the same analogue signal straight through, in either direction
- Two adaptors: one red, one black
- A matched pair for stereo left and right
About this item
The problem it solves is clearance. RCA sockets are almost always on the back of an amplifier, receiver, TV, subwoofer or turntable, and a plug pushed straight in can stand 30 mm or more proud of the chassis before the cable even starts to bend. Push that against a wall or into a cabinet and the lead is forced into a tight curve right at its weakest point — the neck of the moulding, where the cable enters the plug. That is where RCA leads fail. Turning the exit through a right angle lets the equipment sit flat against the wall and takes the strain off the cable entirely.
The contacts are gold-plated, on the pin and on the outer sleeve of both ends. Gold does not oxidise, which matters more on an adaptor than on a cable: an adaptor adds a second set of mating surfaces to the signal path, and a tarnished contact is what produces the crackle or the intermittent channel people chase for weeks. The body is moulded plastic with a knurled band around the grip so it can be worked on and off without pliers.
Complete your setup
Need a male-ended RCA lead for a matching socket? See our 1.2 m single RCA cable. Choose the number of leads for your signal channels; splitters do not combine two active outputs.
Choose only what your setup needs. Linked items are sold separately.
It is completely passive and has no direction — no power, no battery, no switch, nothing to configure or fail. It carries composite video, stereo audio, digital coaxial audio and subwoofer signals equally well, because all of those use the same RCA connector and the adaptor is simply a piece of wire in a plastic shell.

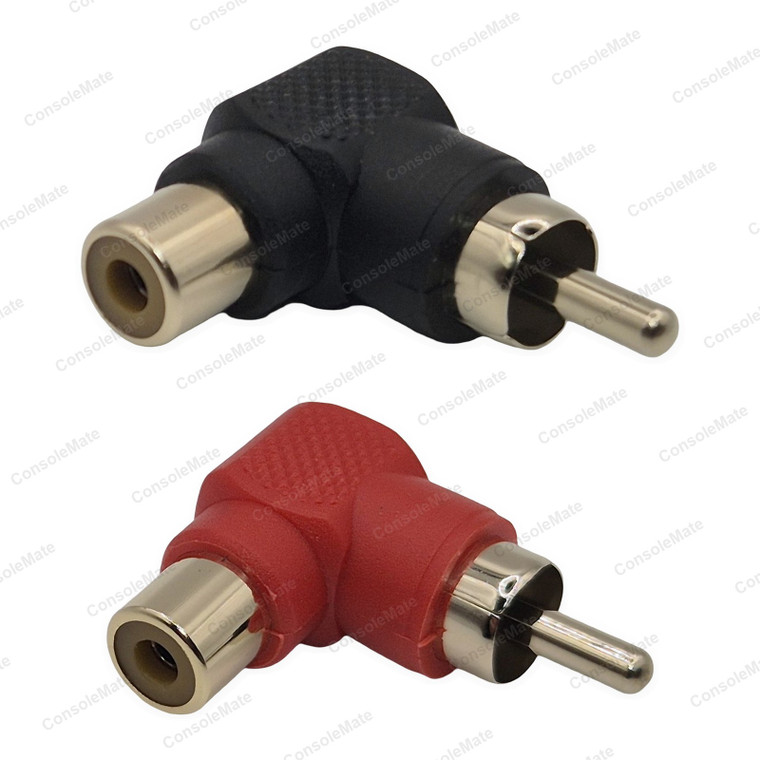

This pack contains two adaptors — one red and one black. That is deliberate, not a random assortment. RCA has been colour-coded since the beginning: on a stereo pair the red connector is conventionally the right channel and the black or white one is the left. Doing both channels with two identical adaptors means guessing at the back of the rack every time; doing it with a matched red-and-black pair means the channel is readable at a glance, months later, in bad light. Nothing stops you using them the other way round — the colour is a label, not a function — but if you are converting a stereo pair, this is the pack that matches how the rest of your cabling is already marked.
Specifications
| Connector A | RCA / Phono male plug |
|---|---|
| Connector B | RCA / Phono female socket |
| Angle | 90° (right angle / L-shaped) |
| Plating | Gold-plated contacts |
| Body | Moulded plastic with knurled grip band |
| Signal | Analogue — composite video, stereo audio, digital coax, subwoofer |
| Power | None — fully passive |
| Condition | Brand new |
| Supplied | Two adaptors — 1× red, 1× black |
