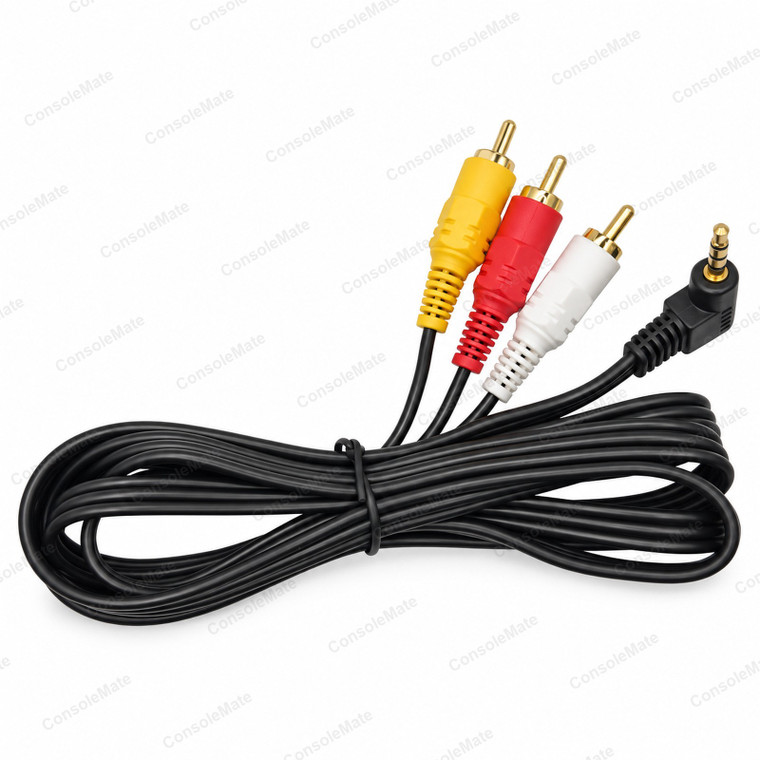

Camcorder AV Cable 1.5 metres – 4 Pole 3.5mm Plug to 3 RCA Plugs
This lead plays a camcorder back through a television. The slim 4-pole 3.5mm plug goes into the camera's AV OUT socket and the three RCA plugs go into the TV: yellow to composite video, red and white to the right and left audio inputs.
Check compatibility
Please check the pin order before buying – this is the important one. Camera makers wired this connector in more than one order, and this lead is the white-tip version: 1 white (tip), 2 yellow, 3 ground, 4 red. It suits cameras wired that way – commonly JVC and Sony models. If your camera expects a different order you may get no picture, or audio and video swapped over. If you are unsure, check your camera's manual or message us with the model and we will tell you whether this is the right one.
Key product details
- Camcorder AV output lead – carries composite video and stereo audio from a camera to a TV
- 4-pole (quad) 3.5mm right-angle plug to three RCA plugs: yellow video, red and white audio
- 1.5 metres (150 cm) of reach – enough to sit the camera on a table beside the TV
- Gold-plated RCA plugs and a shielded cable for a clean picture and low hum
- Right-angle plug sits flat against the camera body instead of sticking straight out
- Brand-new replacement for the lead that came with the camera
About this item
Length: the cable measures 1.5 metres – 150 cm, so the camera can sit on a table or shelf beside the TV rather than balanced on top of it. The right-angle plug lies flat against the camera body, which is easier on the socket than a straight plug when the camera is resting on its base.
What this is not. It is not an S-Video lead, and it is not a plain 3.5mm to two-RCA audio cable – those carry no picture. It is also not one of the short adaptors that give you three RCA sockets to plug your own cable into; this is a full 1.5 metres lead with three RCA plugs on the end.
Complete your setup
HDMI-only TV? Use this composite AV lead with our composite AV-to-HDMI converter. It accepts yellow/red/white RCA plugs and needs a separate HDMI cable and suitable 5 V, 1 A USB power source; its USB power lead is included. It does not accept component video.
Choose only what your setup needs. Linked items are sold separately.
