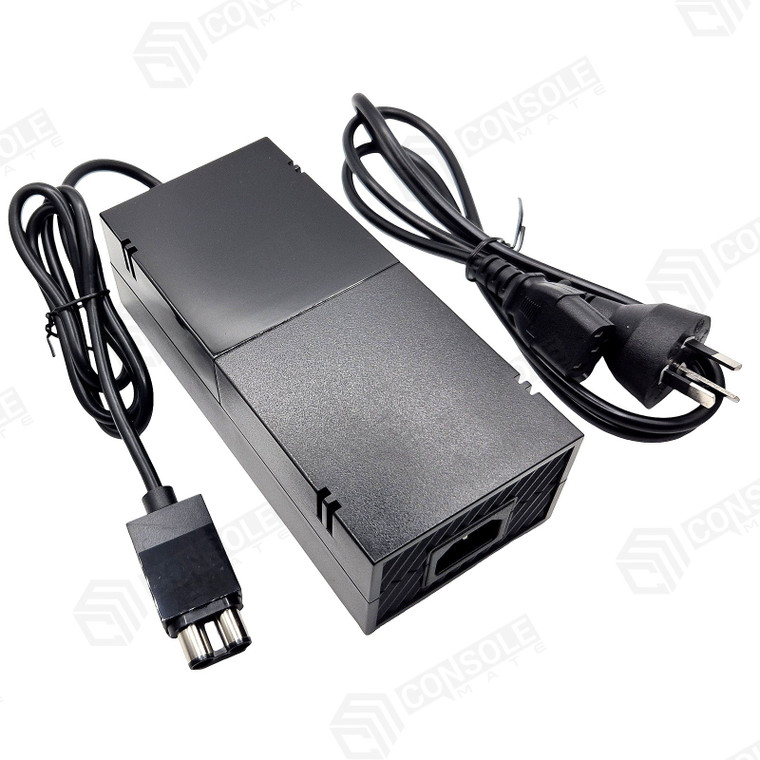

220W Heavy-Duty AC Power Supply Brick for the Xbox One Console - 12V 17.9A with Australian Mains Lead
This is the heavy-duty option in our Xbox One power supply range.
Check compatibility
Please note: this supply is for the original Xbox One only. The Xbox One S and Xbox One X have their power supplies built into the console and do not use an external brick, so this will not fit those models. It is also not for the Xbox 360 or the Xbox Series X/S.
Check these alternatives
Have an Xbox One S/X or Series S/X instead? Those use internal supplies; see our figure-8 mains lead. Check the matching C7 inlet and console voltage. This is an alternative for those models, not an add-on to the original Xbox One brick.
Choose only what your setup needs. Linked items are sold separately.
Key product details
- Heavy-duty 220W replacement power brick for the original Xbox One
- Output: 12V DC 17.9A plus 5V standby 1A - 220W total
- Matches the output rating of the original Microsoft supply - maximum headroom
- Low-noise version - improved cooling fan and internal structure
- Built-in protection: short-circuit, over-voltage, over-current and over-temperature
- Input: 100-240V AC, 47-63Hz - safe on Australian mains
- Australian 3-pin mains lead included (1.2 m) - nothing else to buy
- 80 cm lead from the brick to the console
- LED status light - amber on standby, green once the console is switched on
- Flame-retardant ABS/PC housing, tested for temperature, vibration and drop
- Brand new, 12-month warranty, dispatched from Australia
About this item
It is a complete replacement for the large external brick used by the original Xbox One console, and it arrives with the Australian mains lead already in the box, so you can be back up and running straight away.
What separates it from a standard replacement is the rating. This unit delivers 12V DC at 17.9A, plus a 5V standby rail at 1A - 220W in total, which matches the output rating of the power supply the console originally shipped with. Most replacement bricks on the market are rated at 135W. Those will run the console, but this one carries the full original headroom, which is what you want if your console works hard, sits in a warm room, or runs with a Kinect attached.
It is the low-noise version, with an improved cooling fan and revised internal structure. Protection is built in on four fronts - short-circuit, over-voltage, over-current and over-temperature - and the housing is a flame-retardant ABS/PC moulding. The unit is tested for temperature, vibration and drop, and holds line and load regulation to within 5%.
Two leads are involved and they are different lengths. The captive 80 cm lead runs from the brick to the console. The 1.2 m Australian 3-pin mains lead runs from the wall to the brick and is detachable (standard IEC), so if the cord is ever damaged you can replace just the cord rather than the whole supply.
There is a status LED on the front. With the power supply plugged in and the console switched off it sits amber - that is standby, and it is what you should see before you press the power button (on some units the amber reads closer to red). It turns green once you switch the console on. A flashing light means the supply has detected a fault. That single light makes it much easier to tell whether a power problem is the brick or the console.
